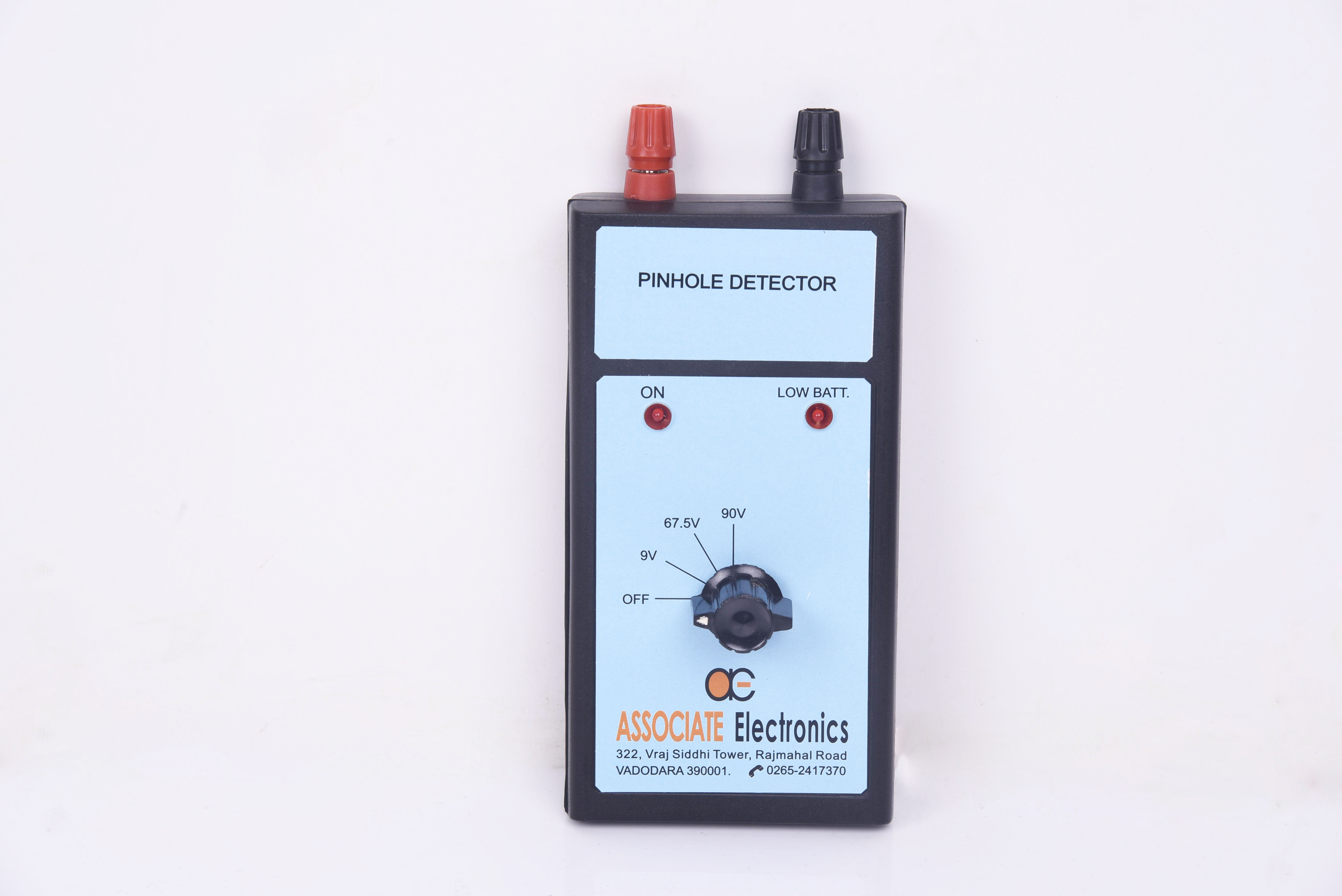

Pinhole Detector
ASSOCIATE ELECTRONICS pioneers in manufacturing Pinhole Detector and ancillary testing equipments now offers the latest innovative Model PD-90 that confirms the chemical fabrication field proven cases with advanced Technology in solid state circuitry that is simplified & more efficient with reliability.
To test Pinhole, Puncture & Blank portion in thin (50 to 500 micron) insulating coating on conductive material.
| EPOXY PAINT |
| POWDER COATING |
| OIL PAINT |
| ENAMEL PAINT etc |
Its range of voltages are 9V, 67.5V & 90V through selector switch, you have to allow to select the voltage exactly to the level you desire for the coating you are inspecting, Whatever the coating may be EPOXY PAINT, OIL PAINT, ENAMEL PAINT & POWDER COATING etc..( 50 to 500 micron thick).
| Input supply | 9V Battery, Inbuilt. |
| Out put Voltage | 9V, 67.5V & 90V DC |
| Size | (W) 90mm (L) 190mm (H) 30mm |
| Weight | 500 gram. Approximately |
| Light Weight |
| Easy to carry |
| Compact design |
| With attractive carry case. |
| Insulated box |
| This instrument comes in a packed damage free PVC case. |
| Separate (detachable) probe stick available with instrument. |
| Backed with after sales Technical services. |
| One year limited warranty. |
