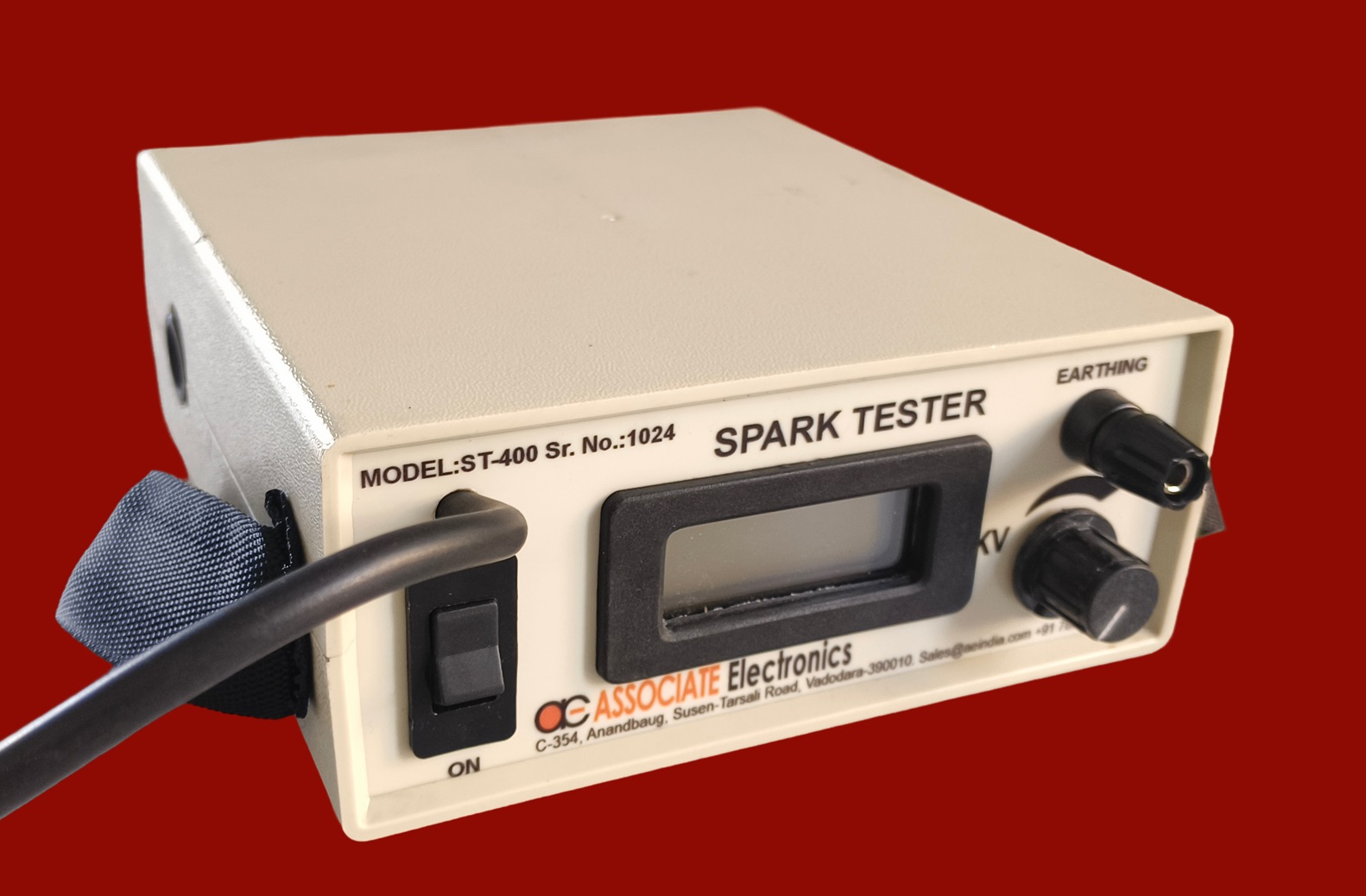

Spark Tester
ASSOCIATE ELECTRONICS pioneers in manufacturing SPARK TESTER and ancillary testing equipments now offers the latest innovative Model ST-40 that confirms the chemical fabrication field proven cases with advanced Technology in solid state circuitry that is simplified & more efficient with reliability.
To detect Pinhole, Puncture & Blank portion in thick(1mm to 10 mm) insulating coating on conductive material.
| FRP Lining |
| Glass Lining |
| Rubber Lining |
| Teflon Coating |
| P. U. Coating |
| Cement Coating etc... |
Its range of voltage from 0 KV to 40 KV in continue mode allows you to set the voltage exactly to the level you desire for the coating you are inspecting, whatever the coating may be FRP LINING, GLASS LINING, RUBBER LINING etc.. You have at your control the voltage setting that you require.
| Operated by | 230 V +- 2%, 50 Hz |
| Out put Voltage | 0 KV to 40 KV pulse type |
| Size | (W) 9" (D) 4.5" (H) 7" |
| Weight | 2.5 Kgs. approximately |
| Digital Display |
| Light Weight |
| Easy to carry |
| Compact design |
| Separate (detachable) H.T. probe stick available with instrument. |
| Backed with after sales Technical services. |
| One year warranty. |
